Our Products

Point of Sale Machines

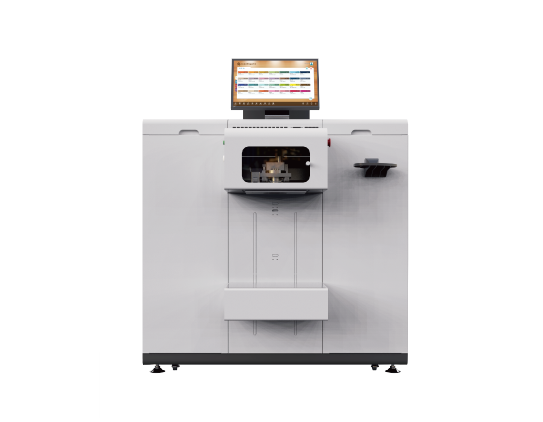

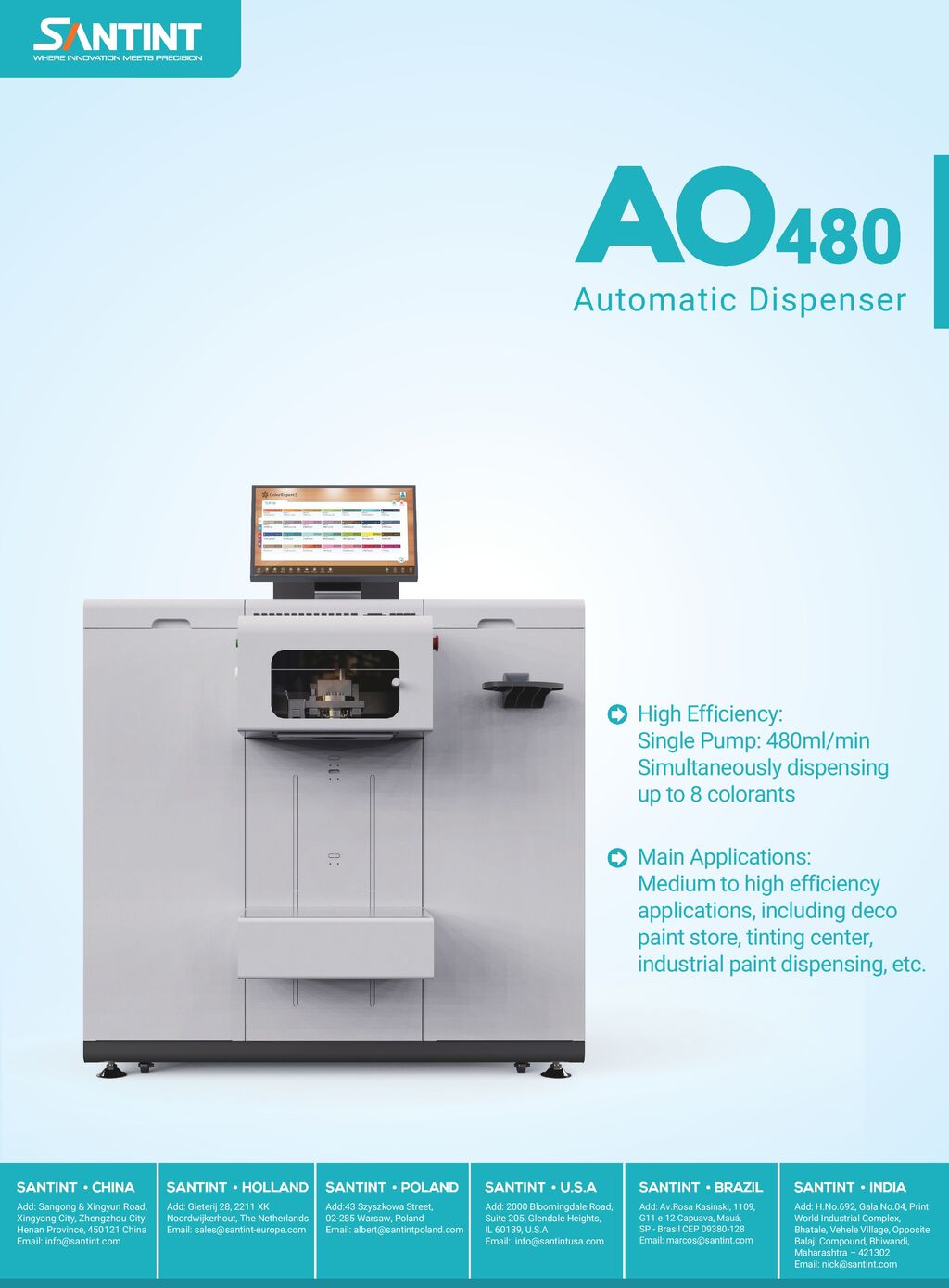

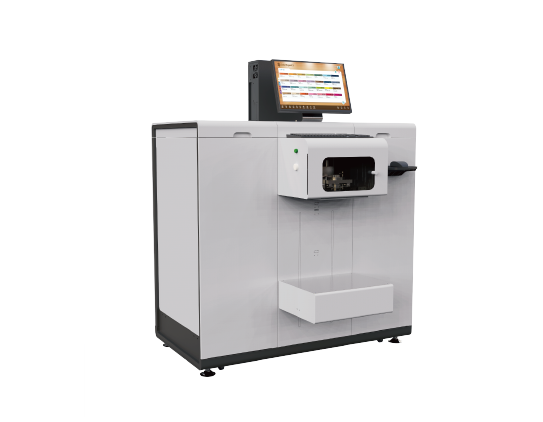

AO480 Simultaneous Dispener

Product Overview
High Efficiency:Single Pump: 480ml/min Simultaneously dispensing up to 8 colorants Main Applications:Medium to high efficiency applications, including deco paint store, tinting center, industrial paint dispensing, etc
Product Parameters
Dispensing Type

8 channels simultaneous (max)

Minimum Shot

1/384Y(0.077ml)*It depends on the product property

Efficiency of Single Pump

480ml/min (1500ml/min when＜ 70ml)*It depends on the product property

No. of Canisters

Up to 32

Canister Type

POM: 2.5L/4.5L/6L/12L/22L Stainless Steel: 6L/12L/22L （Optional）External storage cans with custom capacity

Machine Dimension (WxDxH)

1284 x 1060 x 1237 mm (S) 1694 x 1060 x 1237 mm (M) 2072 x 1060 x 1245 mm (L)

Packing Dimension (WxDxH)

1340 x 1050 x 1415 mm (S) 1760 x 1050 x 1470 mm (M) 2140 x 1055 x 1415 mm (L) Customization version subject to actual dimension

Rated Power

600W

Power Supply

220V/110V,50Hz/60Hz

Gallery

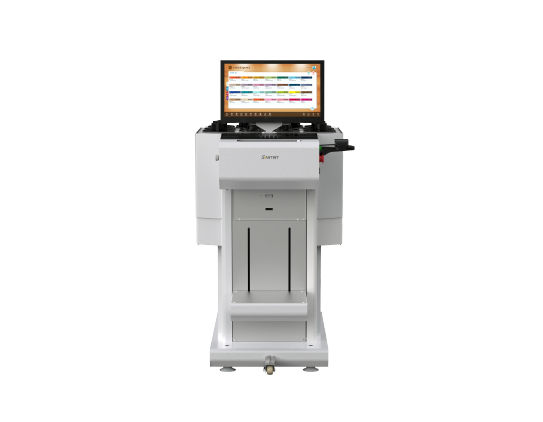

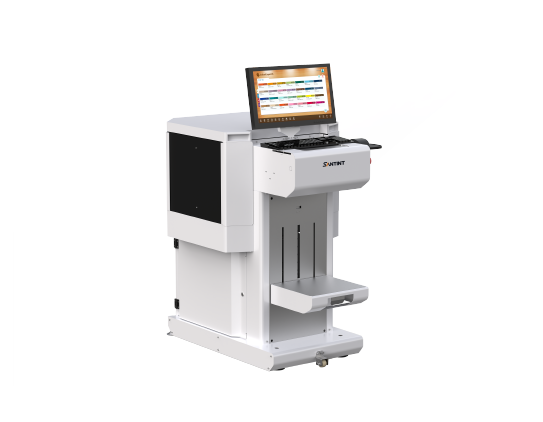

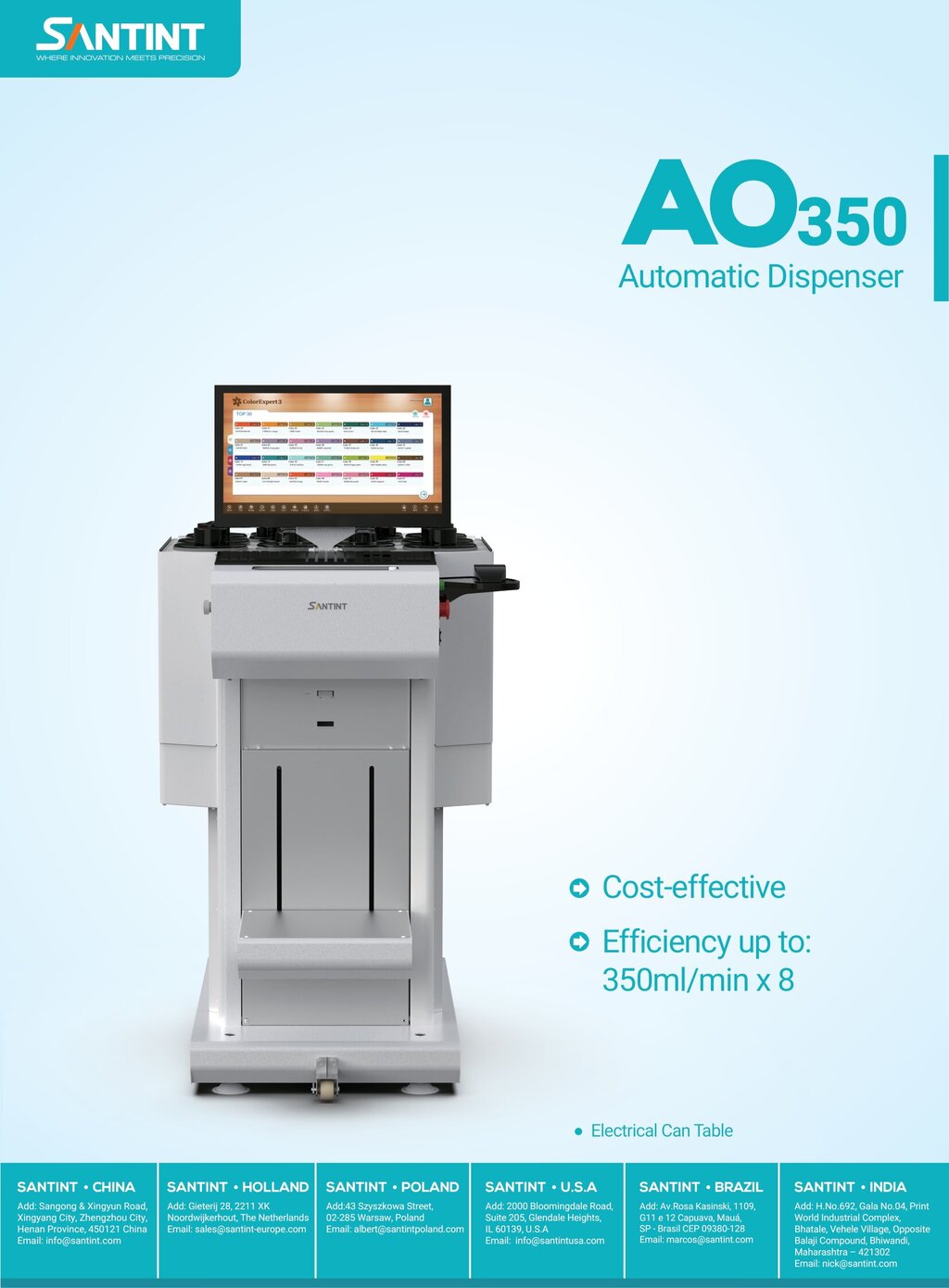

AO350 Automatic Dispener

Product Overview
Cost-effective
Efficiency up to 350ml/min*8
Product Parameters
Dispensing Type

8 channels simultaneous (max)

Minimum Shot

1/384Y(0.077ml)*It depends on the product property

Efficiency

350ml/min x 8*It depends on the product property

No. of Canisters

Up to 16

Canister Type

2.5L/4.5L/6L

Canister Material

POM

Machine Dimension (WxDxH)

720×1080×1145mm

Packing Dimension (WxDxH)

D x H) 760×1140×1170mm

Flow Rate (Single Pump)

775ml/min*It depends on the product property

Efficiency (Single Pump)

350ml/min*It depends on the product property

Rated Power

160W

Power Supply

220V/110V, 50Hz/60Hz

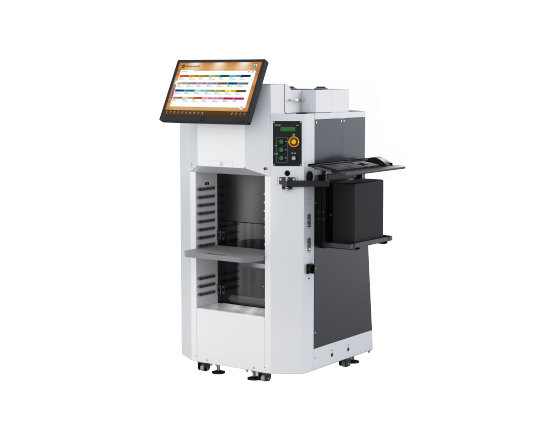

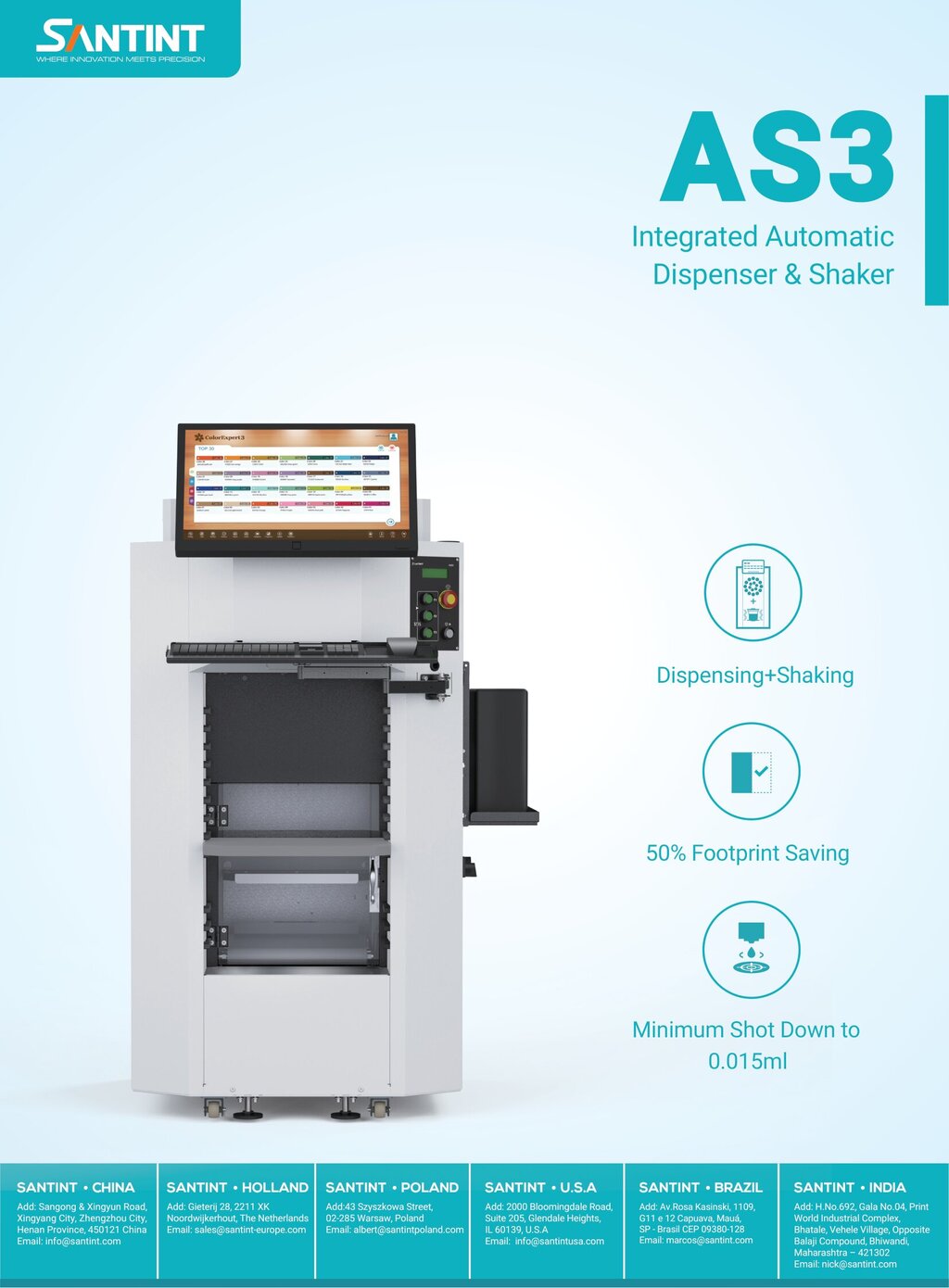

AS3 Integrated Automatic Dispener & Shaker

Product Overview
Dispensing+Shaking
50% Footprint Saving
Minimum Shot Down to 0.015ml

Product Parameters

Mixing Mode

Vibrational

Mixing Time

60/180/300s (free combination available

Mixing Weight

35kg

Mixing Speed

680rpm

Minimum Shot

1/2000Y(0.015ml) *It depends on the product property

Canister Volume

16x2.3L(POM)

Stirring Mode

Automatic

Top Cover

Optional

Mixing Range

Can Capacity 1-20L Height 50-390mm

Packing Dimenstions

950x1050X1655mm

Machine Dimension (WxDxH)

785x980x1500mm

Net Weight

300kg

Gross Weight

360kg

Rated Power

850W

Power Supply

220V/110V, 50Hz/60Hz

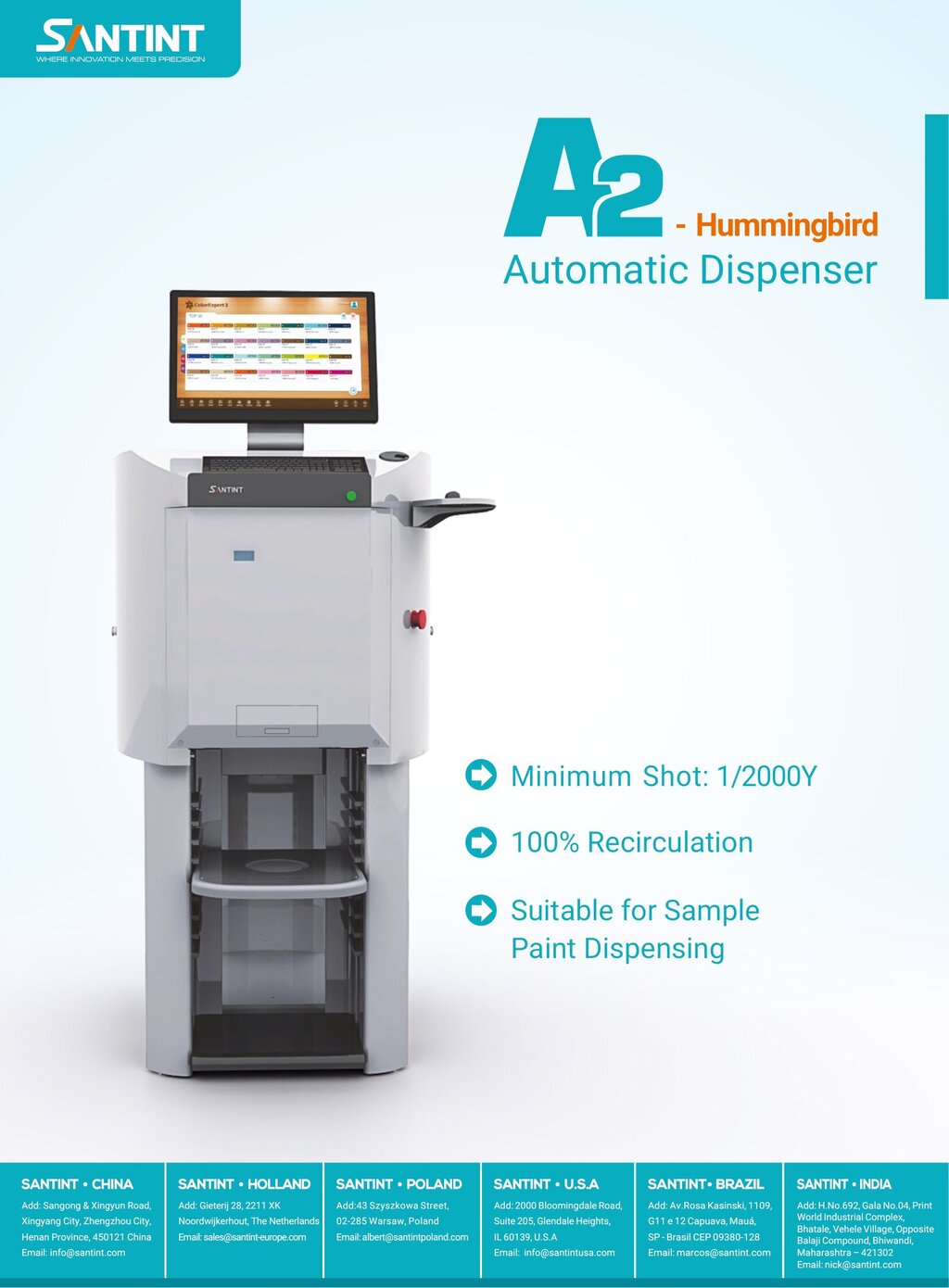

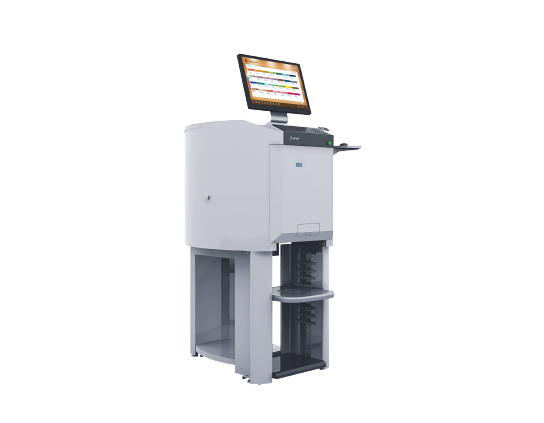

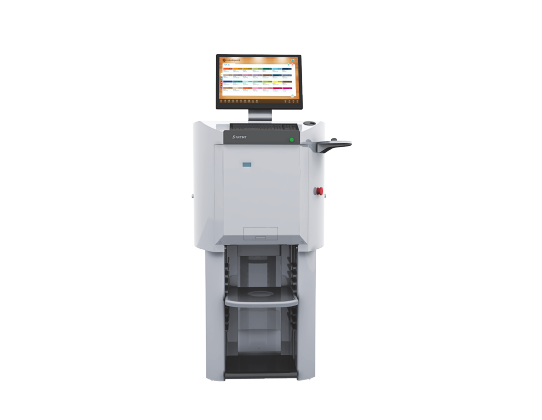

A2 Hummingbird Automatic Dispener

Product Overview
Minimum Shot:1/2000Y
100% Recirculation
Suitable for Sample Paint Dispensing

Product Parameters

Single Pump Standard Efficiency

200ml/min*It depends on the product property

Minimum Shot

1/2000Y(0.015ml)*It depends on the product property

Pump Capacity

60ml

Stirring Speed

20rpm

Canister Size

1.8L/2.3L POM 2.3L/3.8L Stainless Steel (Optional)

No. of Canisters

Up to 16

Max Can Size ( D X H )

320mmX600mm

No. of Canisters

Up to 16

Loading Capacity

14 Pieces/20GP

Net Weight

130kg

Gross Weight

155kg

Machine Dimension (WxDxH)

707X848X1300mm

Packing Dimension (WxDxH)

830X990X1500mm

Rated Power

100W

Power Supply

220V/110V 50Hz/60Hz

AO480 Simultaneous Dispener

Product Overview
High Efficiency:Single Pump: 480ml/min Simultaneously dispensing up to 8 colorants Main Applications:Medium to high efficiency applications, including deco paint store, tinting center, industrial paint dispensing, etc

Product Parameters

Dispensing Type

8 channels simultaneous (max)

Minimum Shot

1/384Y(0.077ml)*It depends on the product property

Efficiency of Single Pump

480ml/min (1500ml/min when＜ 70ml)*It depends on the product property

No. of Canisters

Up to 32

Canister Type

POM: 2.5L/4.5L/6L/12L/22L Stainless Steel: 6L/12L/22L （Optional）External storage cans with custom capacity

Machine Dimension (WxDxH)

1284 x 1060 x 1237 mm (S) 1694 x 1060 x 1237 mm (M) 2072 x 1060 x 1245 mm (L)

Packing Dimension (WxDxH)

1340 x 1050 x 1415 mm (S) 1760 x 1050 x 1470 mm (M) 2140 x 1055 x 1415 mm (L) Customization version subject to actual dimension

Rated Power

600W

Power Supply

220V/110V,50Hz/60Hz

Gallery

AO480 Simultaneous Dispener

Product Overview
High Efficiency:Single Pump: 480ml/min Simultaneously dispensing up to 8 colorants Main Applications:Medium to high efficiency applications, including deco paint store, tinting center, industrial paint dispensing, etc

Product Parameters

Dispensing Type

8 channels simultaneous (max)

Minimum Shot

1/384Y(0.077ml)*It depends on the product property

Efficiency of Single Pump

480ml/min (1500ml/min when＜ 70ml)*It depends on the product property

No. of Canisters

Up to 32

Canister Type

POM: 2.5L/4.5L/6L/12L/22L Stainless Steel: 6L/12L/22L （Optional）External storage cans with custom capacity

Machine Dimension (WxDxH)

1284 x 1060 x 1237 mm (S) 1694 x 1060 x 1237 mm (M) 2072 x 1060 x 1245 mm (L)

Packing Dimension (WxDxH)

1340 x 1050 x 1415 mm (S) 1760 x 1050 x 1470 mm (M) 2140 x 1055 x 1415 mm (L) Customization version subject to actual dimension

Rated Power

600W

Power Supply

220V/110V,50Hz/60Hz

Gallery
